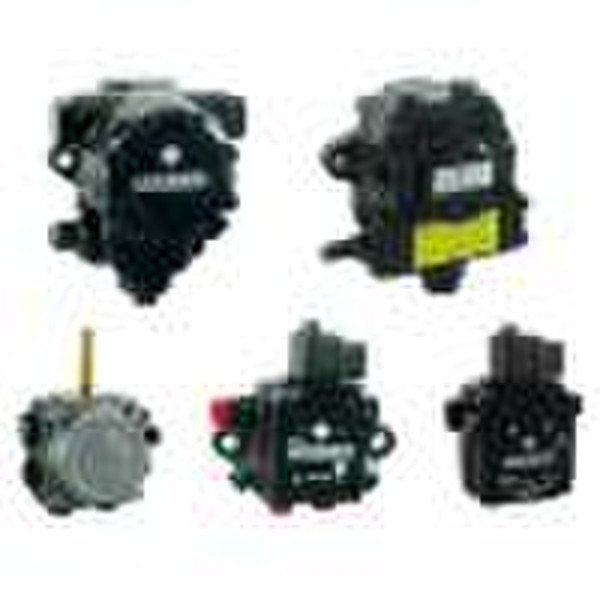

Oil Pump

Oil Pump,burner,pump, oil pump features and specifications: 1) Installed with a solenoid valve, which can control strengthen functions of cut-off/ on valve independent of the rotational speed 2) Technical data: a) Nozzle inlet: G 1/4 b) Outlet: G 1/8 c) Pressure gauge port: G 1/8 d) Vacuum gauge port: G 1/8 3) Hydraulic data: a) Gear size: 47 i) Pressure range: 7 - 14 bars ii) Factory setting: 9 bars b) Gear size: 67mm i) Pressure range: 10 - 15 bars ii) Factory setting: 10 bars c) Operating viscosity: 2 - 12mm2/s (cSt) d) Oil temperature: 0 - 600°C e) Inlet pressure (max.): 2 bars f) Return pressure (max.): 2 bars g) Suction height (max.): 0.45 bars, to prevent air separation from oil h) Rated speed (max.): 2,850 - 3,300rpm i) Solenoid valve: 220 - 240V, 50 - 60Hz Inner packing: 1pc/box Outer packing: 10pcs/ctn
